Products: Ward "Y" Strainers
Range of Sizes from 1/4" to 4" - Range of Connections

Applications

Chemical - Petrochemical - Power Pharmaceutical - Pulp & Paper
Water/Waste Water Treatment
Mining - De-salinization - Irrigation
Refrigeration - Agriculture - H.V.A.C.
Marine - Oil Products - Beverage

Special features generate the Ward Strainer's top quality performance. Its "Y" pattern design keeps fluids flowing with minimal obstruction. As fluid flows into the strainer (A), contaminants are strained out and collected on the screen (B) near the release (C). The Teflon® body seal (D) is available with graphite for higher temperatures. Contaminant-free fluid flows out of the strainer's other end. The stainless steel screens (B) come in a variety of mesh sizes.

Surpassing Industry Standards ASME B16.34; 600 class.

High Temperature Options Teflon® cap seals with optional graphite for higher temperatures.

Top-Entry Design In-line maintenance is easy; remove the threaded cap, examine the strainer and, if screen or seal is damaged, replace it without any special tools.

Superior Flow Characteristics "Y" pattern design keeps fluids flowing with minimal obstruction.

Easy Mounting Hex pipe ends provide easy installation, as do optional Unibody flanged ends.

Aesthetics High quality investment cast bodies make the Ward Strainer the best you can buy.

Multiple Material Options Material options include Alloy-20, CN7M, Monel, M-35-1, Hastelloy C and CW12MW.

Carbon Steel Strainers Steel strainers have black oxide coating. All internal components are 316 stainless steel.

Stainless 316 Screens The Ward Strainer stainless 316 screens come in a variety of mesh counts: 20, 40, 60, 80, 100.

Easy Maintenance The Ward Strainer features a blow-off port for clean out.

Installing a strainer before valves and instrumentation can save you costly maintenance and repair. When you team up your Ward Strainers with Ward's soft-seated check valves (or ball valves from other manufacturers), you'll eliminate damaging contaminants. Ward "Y" Strainers are available in a variety of materials and a full range of end connections to accomodate many differrent services. The "Y" pattern design keeps fluids flowing with minimal obstruction. A Teflon® cap seal with optional graphite for higher temperatures prevents leakage. Finally, maintenance is easy with Ward Strainers, which feature a blow-off outlet for self-cleaning


Strainer Size
CV Rating
1/2"
4.00
3/4"
13.0
1"
22.0
1-1/4"
34.0
1-1/2"
50.0
2"
89.0
3"
177.0
4"
310.0

Specifications

Ward in-line Strainer ASME 600 lb. class. Materials CF3M, 316SS with 316SS screens and WCB steel with 316SS screens. Replaceable screens. Size 1/4" through 4".


Threaded Ends FNTP to B1-20-1
Butt Weld Ends B16.25
Socket Weld Ends B16.11
Max.Pressure 1440 psi
Max.Temperature 800ºF
Flanged End 150 lb. class
ASME B16.34, B16.5, B16.10
Size 1" through 4"

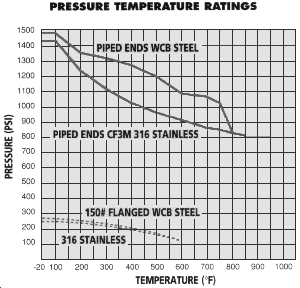

Pressure Rating at 100ºF:
Stainless CF8M 275 psi
Steel WCB 285 psi

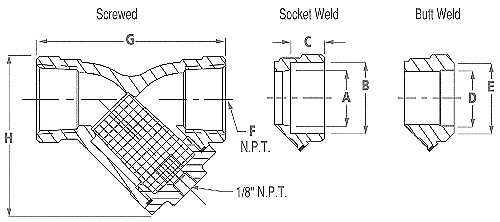

PIPED ENDS (1/4" - 2")

Threaded, Socket-Welded, and Butt-Welded End Strainers. Threaded ends comply to ASME BI-20.3; weld ends come standard in SCH.40. Optional schedules 5 & 10.


Strainer Size
A
B
C
D
E
F
G
H
WT.
1/2"
0.62
0.86
0.50
0.62
0.84
0.50
2.44
2.20
0.8
3/4"
0.82
1.07
0.56
0.82
1.05
0.75
3.13
2.76
1.4
1"
1.05
1.34
0.63
1.05
1.31
1.00
3.50
3.30
1.6
1-1/4"
1.38
1.68
0.69
1.38
1.66
1.25
4.38
3.95
3.2
1-1/2"
1.61
1.92
0.75
1.61
1.91
1.50
4.75
4.43
3.2
2"
2.07
2.41
0.88
2.07
2.38
2.00
6.00
5.49
5.2
All Dimensions expressed in inches, Weights in lbs.

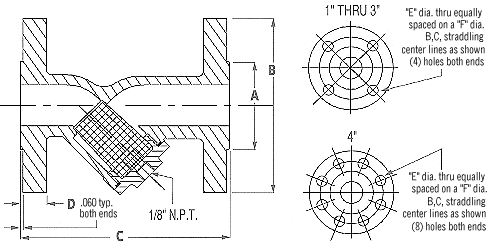

UNIBODY FLANGED ENDS (1" - 4")

ANSI 150# Class Flanged End Strainer complies to ASME B16-34, B16-5, and B16-10.

Strainer Size
A
B
C
D
E
F
WT.
1"
2.13
4.25
5.00
0.62
0.625
3.125
5.4
1-1/2"
2.88
5.00
6.50
0.56
0.63
3.88
10.5
2"
3.62
6.00
8.00
0.62
0.75
4.75
13.0
All Dimensions expressed in inches, Weights in lbs.
